| J-MAX MINI ELECTRIC HOIST |  |
| J-MAX MINI ELECTRIC HOIST | |
J-MAX Mini-Electric Hoist are designed with latest European technology, they are suitable for
lifting or unloding goods in shops ,restorants, industry assembly lines and food industries.
It is also a usful; tool to lifting materials and different goods in or appartment.
 |
 |

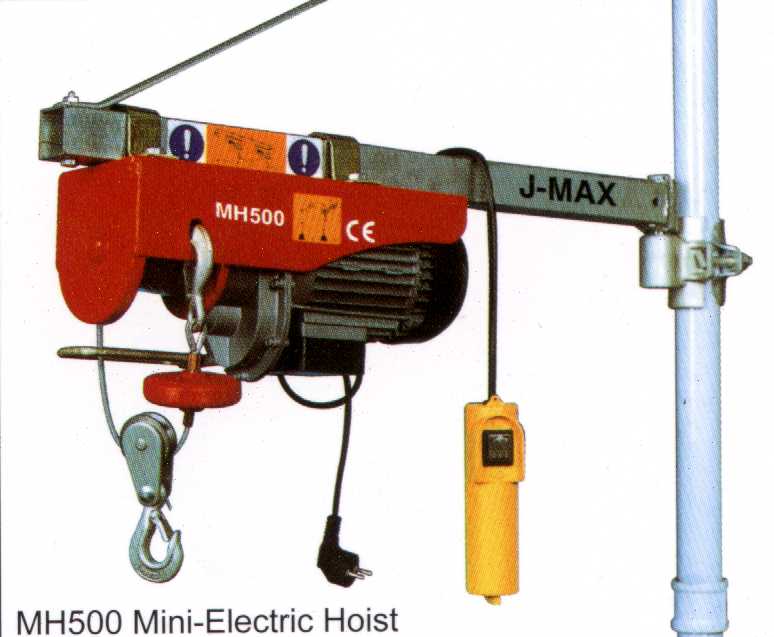

Mini-Electric Hoist
| Model | Use of Hook | Rated Voltage |
Input Power |
Lifting capa. |
Lifting speed |
Lifting height |
Net weight |
| (V) | (W) | (kg) | (m/min) | (m) | (kg) | ||
| MH200 | Single hook | 230 | 500 | 100 | 10 | 12 | 22 |
| Double hook | 230 | 500 | 200 | 5 | 6 | 22 | |
| MH250 | Single hook | 230 | 650 | 125 | 10 | 12 | 23 |
| Double hook | 230 | 650 | 250 | 5 | 6 | 23 | |
| MH400 | Single hook | 230 | 1000 | 200 | 10 | 12 | 33 |
| Double hook | 230 | 1000 | 400 | 5 | 6 | 33 | |
| MH500 | Single hook | 230 | 1150 | 250 | 10 | 12 | 34 |
| Double hook | 230 | 1150 | 500 | 5 | 6 | 34 | |
| MH600 | Single hook | 230 | 1300 | 300 | 10 | 12 | 35 |
| Double hook | 230 | 1300 | 600 | 5 | 6 | 35 | |
| MH1000 | Single hook | 230 | 2200 | 500 | 10 | 12 | 43 |
| Double hook | 230 | 2200 | 1000 | 5 | 6 | 43 |

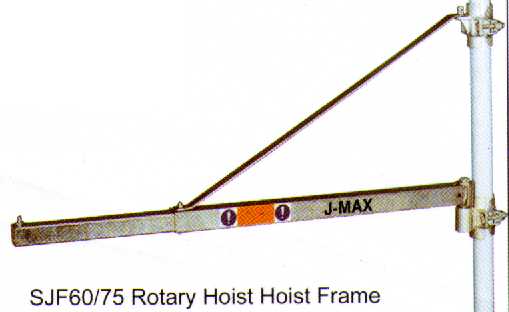

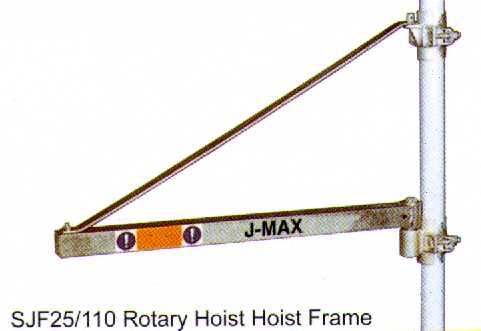

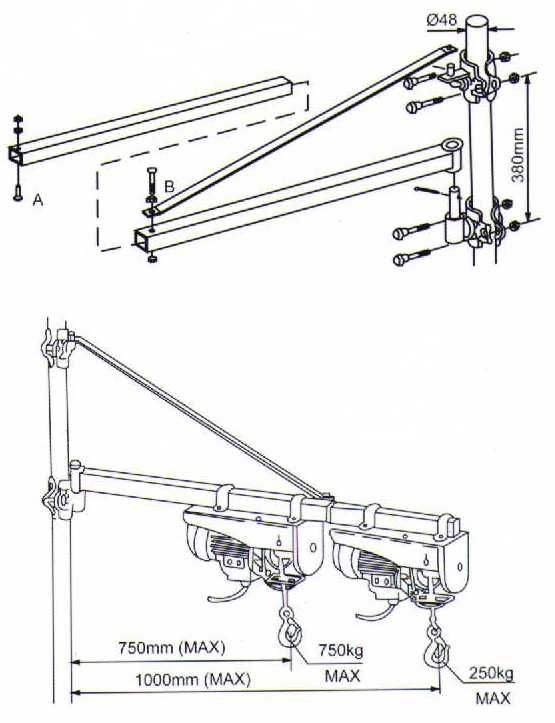

Slewing Jib Frame
| Model | Max.Capacity | Max.Length | Net Weight |
| SJF25/110 | 250 kg | 1100 mm | 30kg |
| SJF25/75 | 600 kg | 750 mm | 22kg |
 |
 |
 |
